S TA N D A R D F E AT U R E S
H U L L & D E C K F E AT U R E S
• Bow Eye & Stern Eyes – Stainless Steel (Bow Eye with
Stainless Steel Scuff Plate)
• Cleats, 10″ Thru-Bolted – Stainless Steel (6) & 8″
Pop-up – Stainless Steel (2)
• Deck Fill Plates, Stainless Steel
• Drain Plug, Brass-Threaded – Garboard
• Fiberglass Stringer System with Fwd. Interior Liner
• Gel Coat, Arctic White
• Hull Windows, Acrylic
• Light, Stern
• Lights, Navigation – Stainless Steel with Motorized
Mast Light
• Quiet Ride™ Technology with Proprietary Tuned
Transom® by Omni Products, Inc.
• Resin, High-Performance Vinylester
• Rub Rail, PVC with Stainless Steel Insert
• Ski Tow Eye, Stainless-Steel
• Storage, Fwd Deck with Hatch

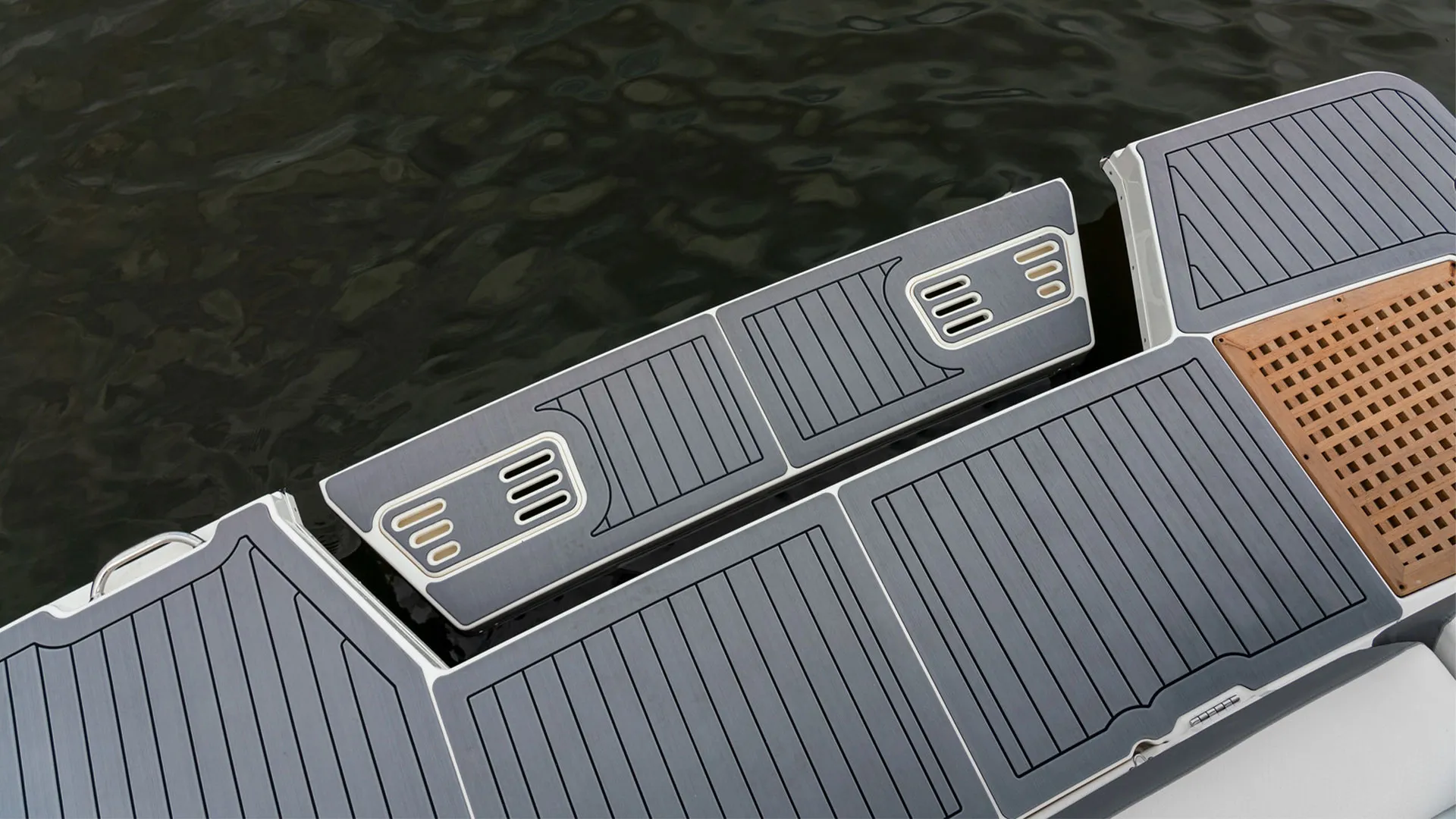

• Swim Platform, Integral
• Terrace, Power Actuated, Fold Down – Starboard Side
• Thru-Hull Fittings, Stainless Steel
• Vent System, Engine Compartment – Integral

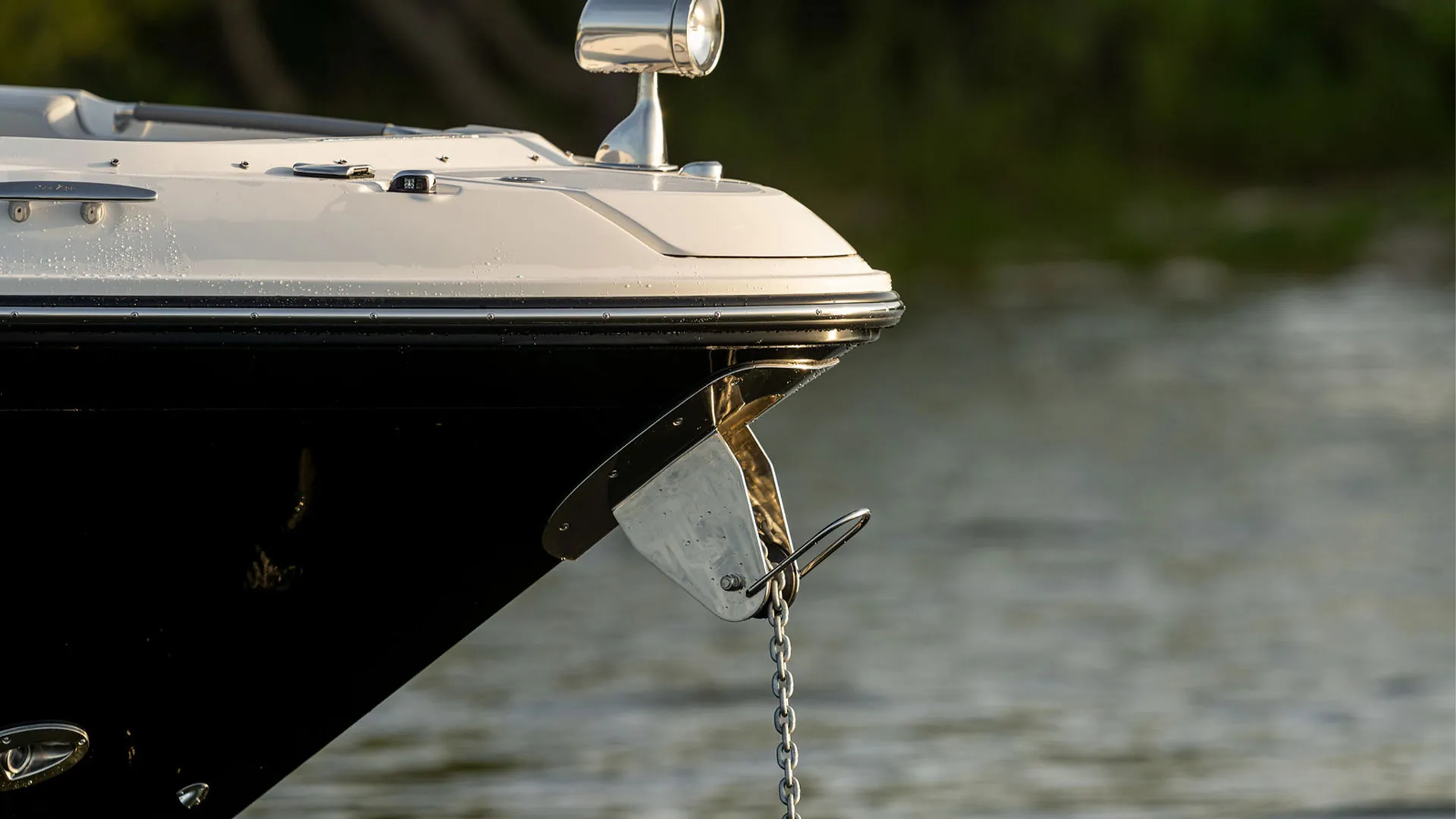

• Windlass, Rope /Chain with Galvanized Anchor, Wash
Down and Bow Controls (Thru-Hull Installation)
• Windshield Wiper – Starboard
• Windshield, Tempered/Tinted Curved Glass with
Black Matte Frame, Bow Walk-Thru & Stainless Steel
Supports

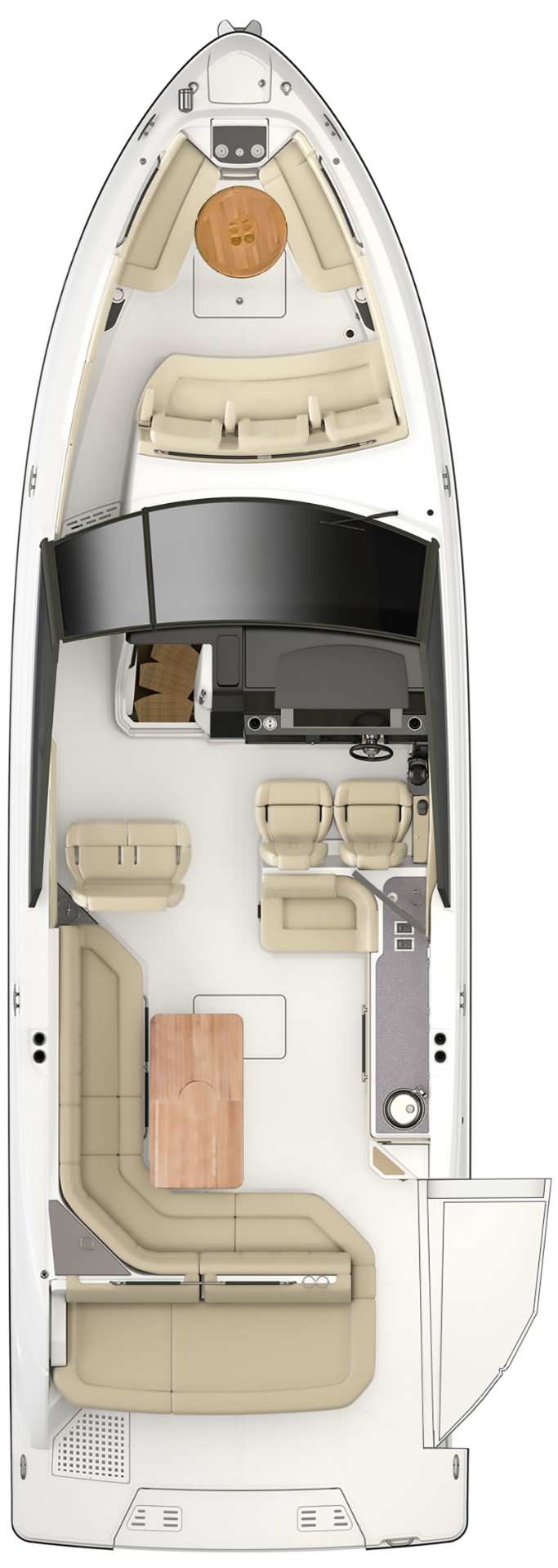

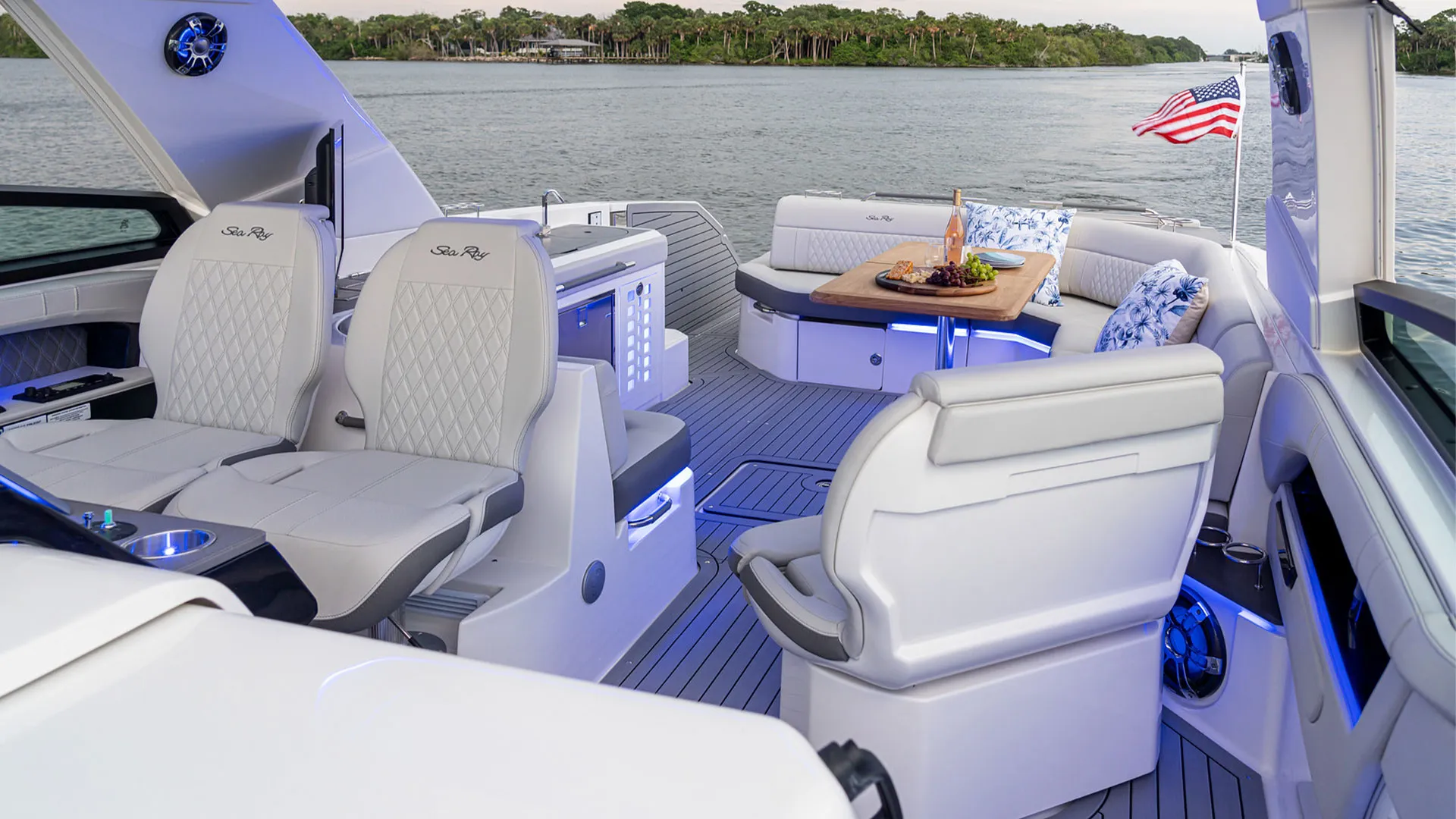

C O C K P I T F E AT U R E S
• Beverage Holders – Stainless with Rubber inserts
with LED Lighting (29)
• Cockpit Vinyl Color: Ivory (White Base Vinyl with
Brown Accent Vinyl)
• Cooler, Cockpit with Dedicated Storage
• Dash, Acrylic Skylight
• Deck Entry Access, Port and Starboard sides.
• Door, Bow Block-Off – Port Side – Acrylic with
Stainless Steel Hardware
• Door, Cabin entry (Sliding and lockable) Fiberglass
• Floor Liner, Fiberglass with Direct Overboard Drainage
• Grab Handles – Stainless Steel with Leather Wrapped
Grips
• Hardtop, Arctic White Fiberglass with Enclosed
Ceiling & Courtesy Lights
• Hatch, Engine Compartment – Electrically Actuated
• Lighting, Courtesy – Stainless Steel
• Outlet, 120V GFI Protected
• Outlet, 12V Accessory (3)
• Storage, Side Panels – Bow – Port & Starboard Tubs
• Storage, Bumper – Floor – Bow
• Storage, Shoes – Aft Cockpit
• Storage, Below ETS Aft Seat
• Storage, Below Port Side Seat
• Table, Teak Cockpit
• USB Stereo Controls (1)
• Walk-Thru Transom (Starboard) with Door

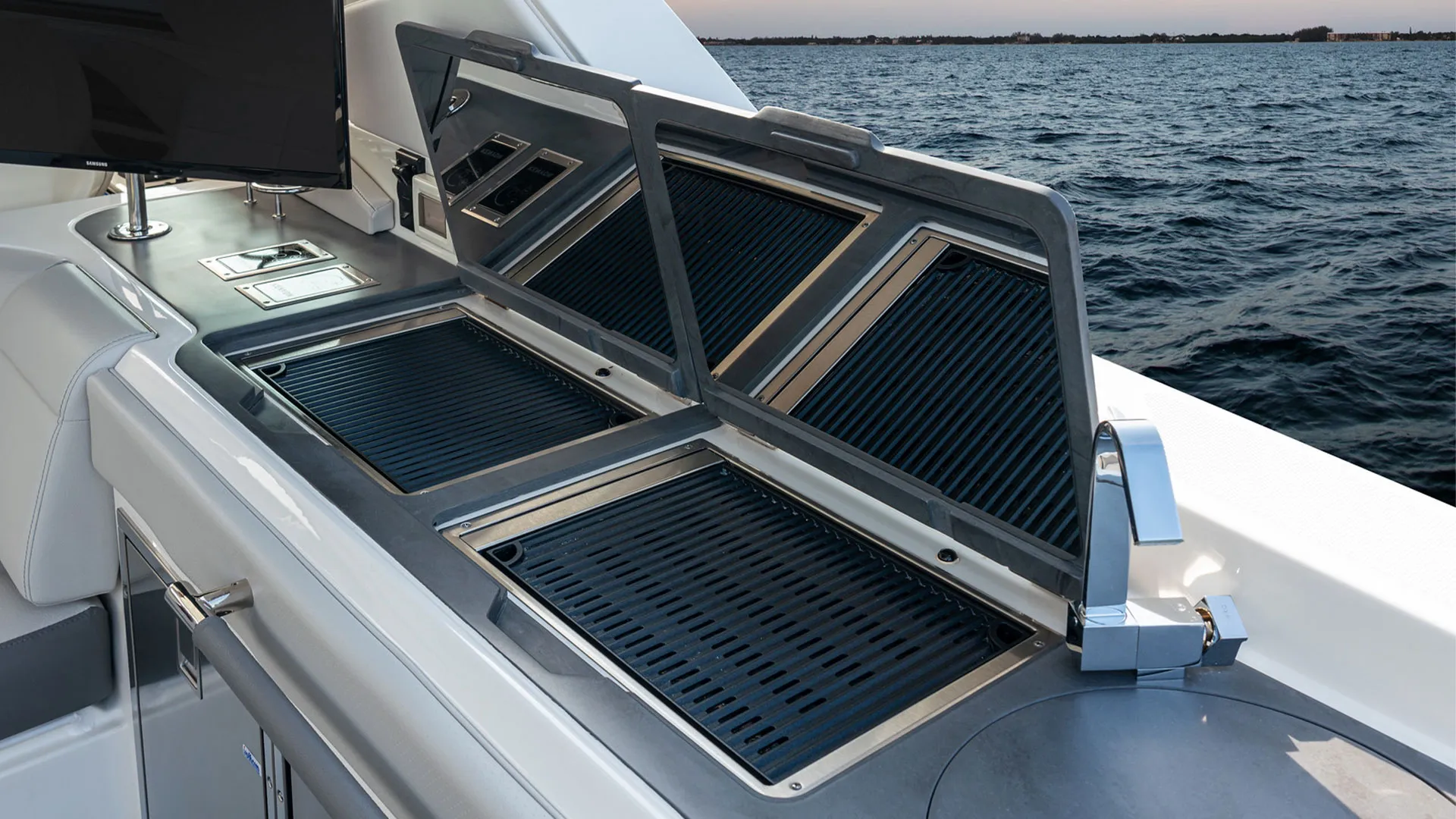

• Wet Bar

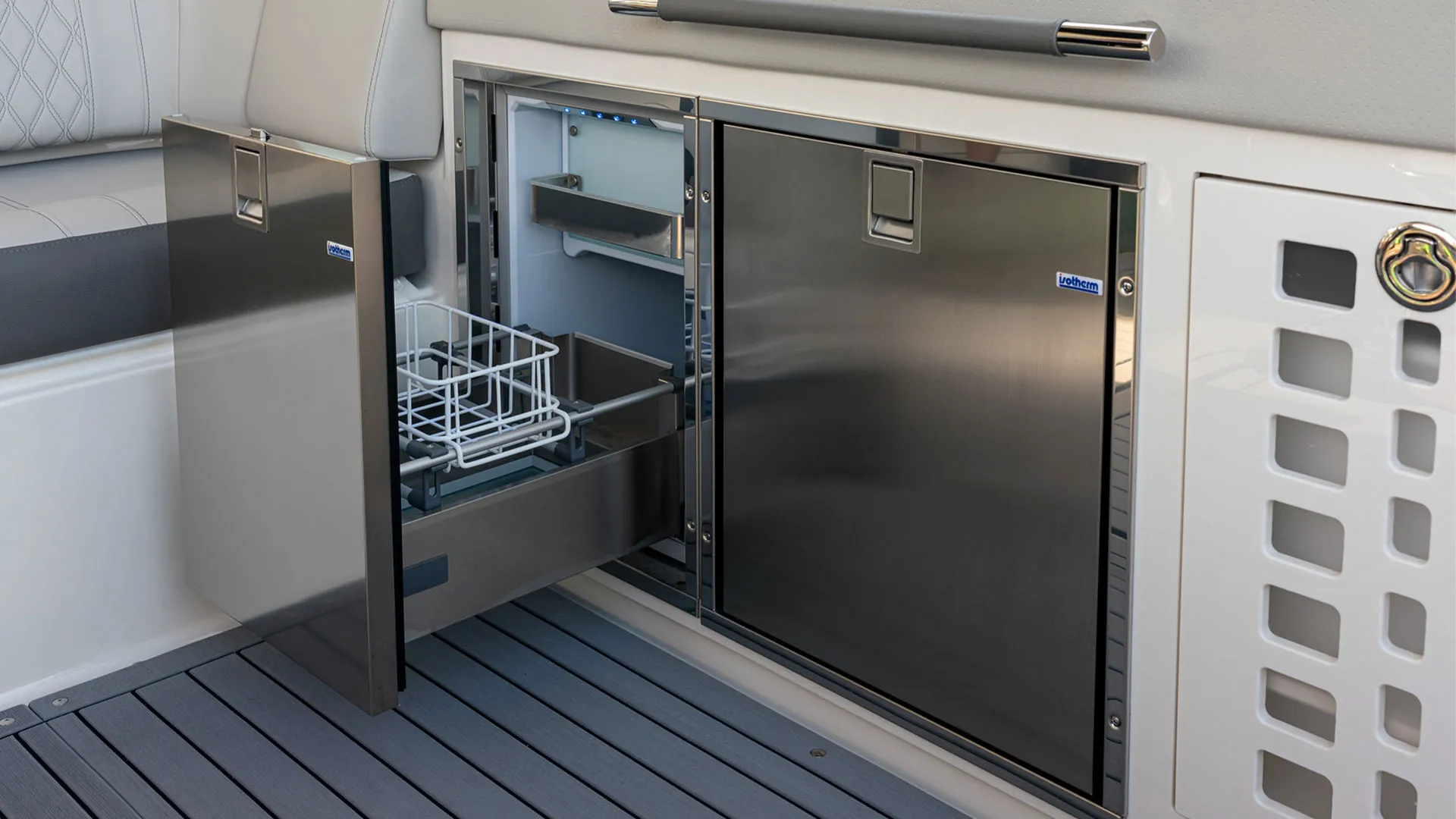

• Refrigerator with Pull-Out Drawers
• Solid-Surface Countertop
• Stainless Steel Grab Handle
• Stainless Steel Sink with Faucet
• Trash Receptacles
SEATING
• Bow Seating, U-Shaped Seating Forward with Fixed
Cushions
• Bow Seating, Large Tour Seating Facing Forward with
Fixed Cushions & Arm Rest
• Cockpit Social Area with Opposing Seating
• Seat, Dual Bucket – Helm with Slider, Flip-Up Thigh-
Rise Bolster and Floor Footrest
• Seat, Dual Bucket-Companion with 180° Swivel with
Paddle Adjustment Levers and Flip Up Thigh Rise
Bolster
• Transom Sungate Seating with 2 Drink Holders
TRANSOM / SWIM PLATFORM
• Storage, Flip Up Port Transom Hatch For Wake/
Paddle Board
• Swim Ladder with Integral Grab Handle
• Transom Washdown Faucet

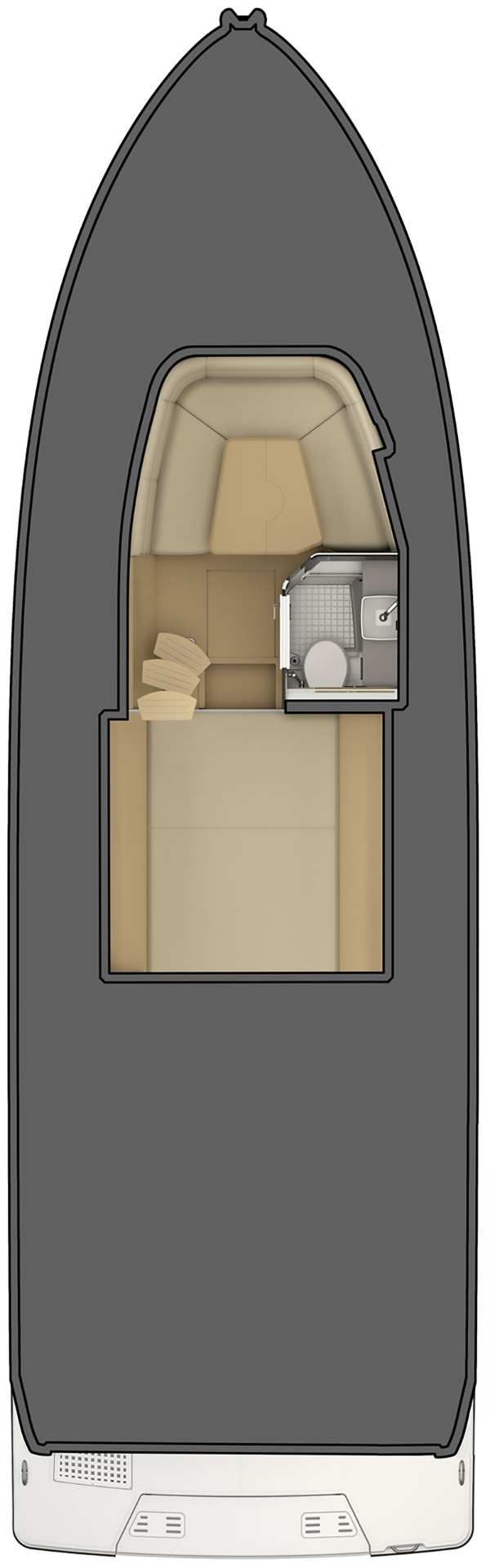

CA B I N F E AT U R E S
• Air Conditioning/Heating, 120V/60 Cycle
• Audio Control Zone with 2 Speakers / Sound Bar &
Remote
• Entrance Steps, Powder Coated Aluminum with Teak
Overlay
• Hull Windows with Pleated Blinds & Tension System
• Refrigerator, In Cabin – Port

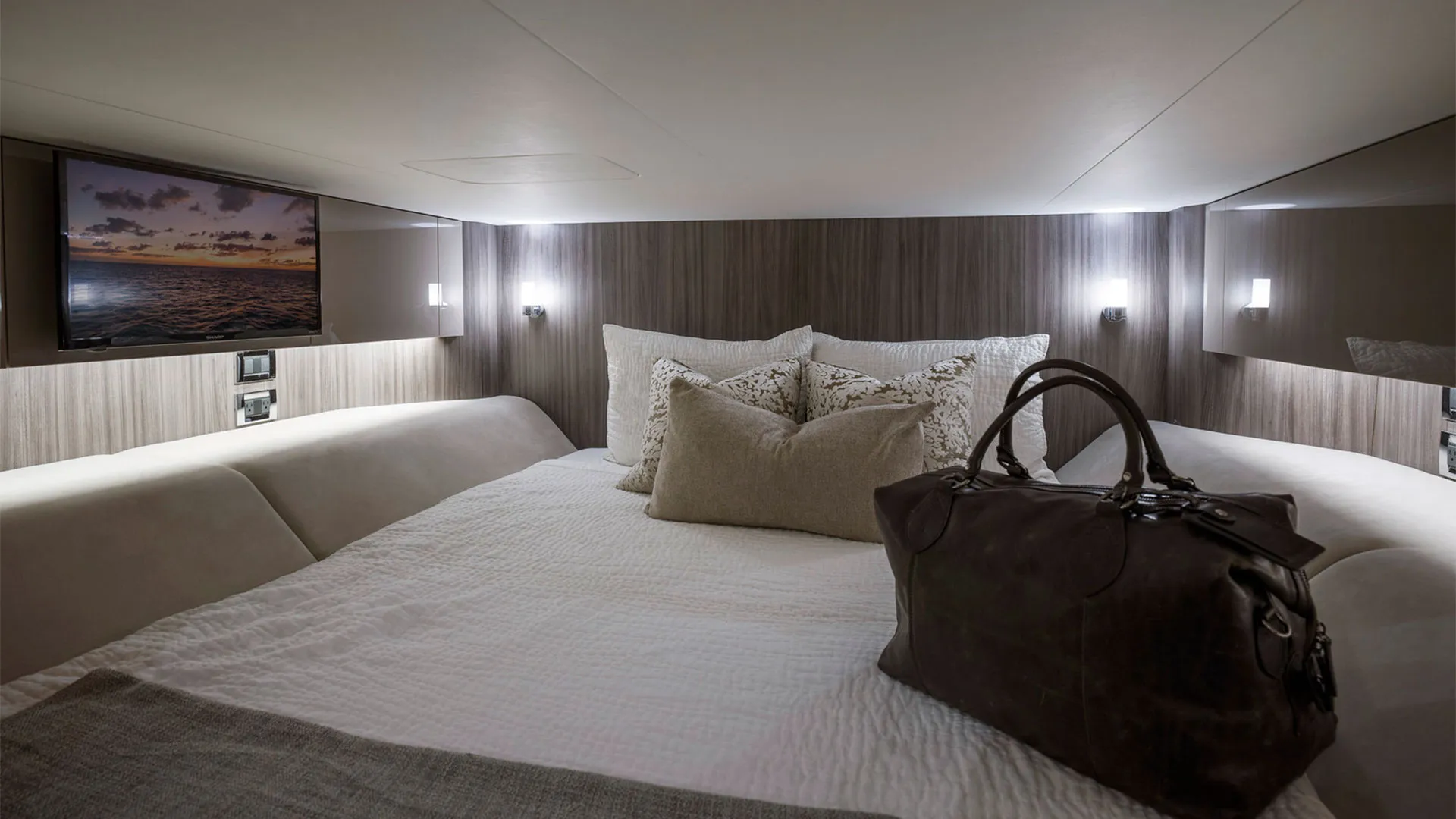

AF T B E RTH
• Berth – Queen with Mattress, Sheets & Throw Pillows
• Curtain, Privacy /Curtain
• Drink Holders (4)
• Sheet Set, Fitted (Neutral Color)
• Storage Cabinets & Lockers with Shelves

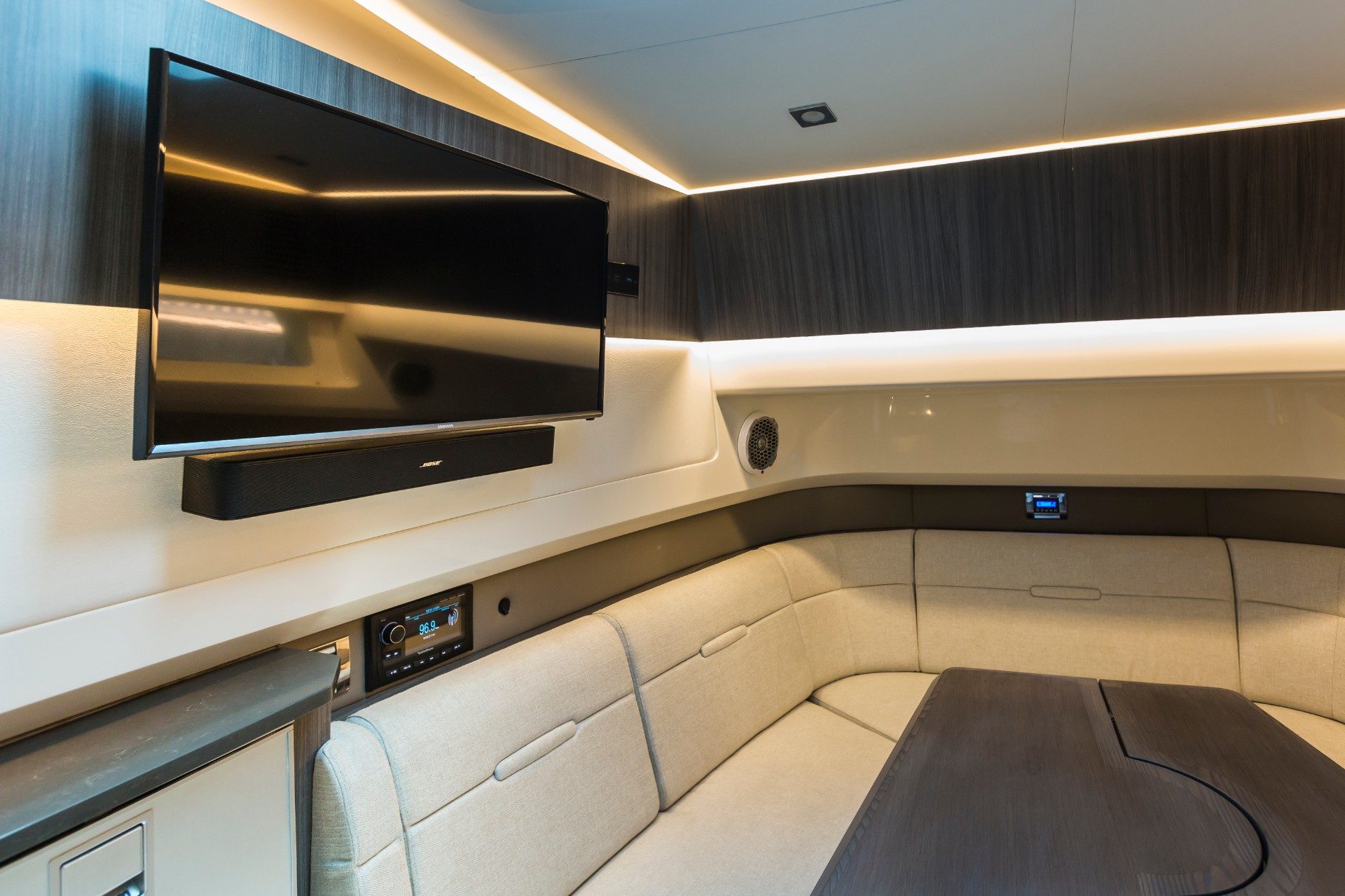

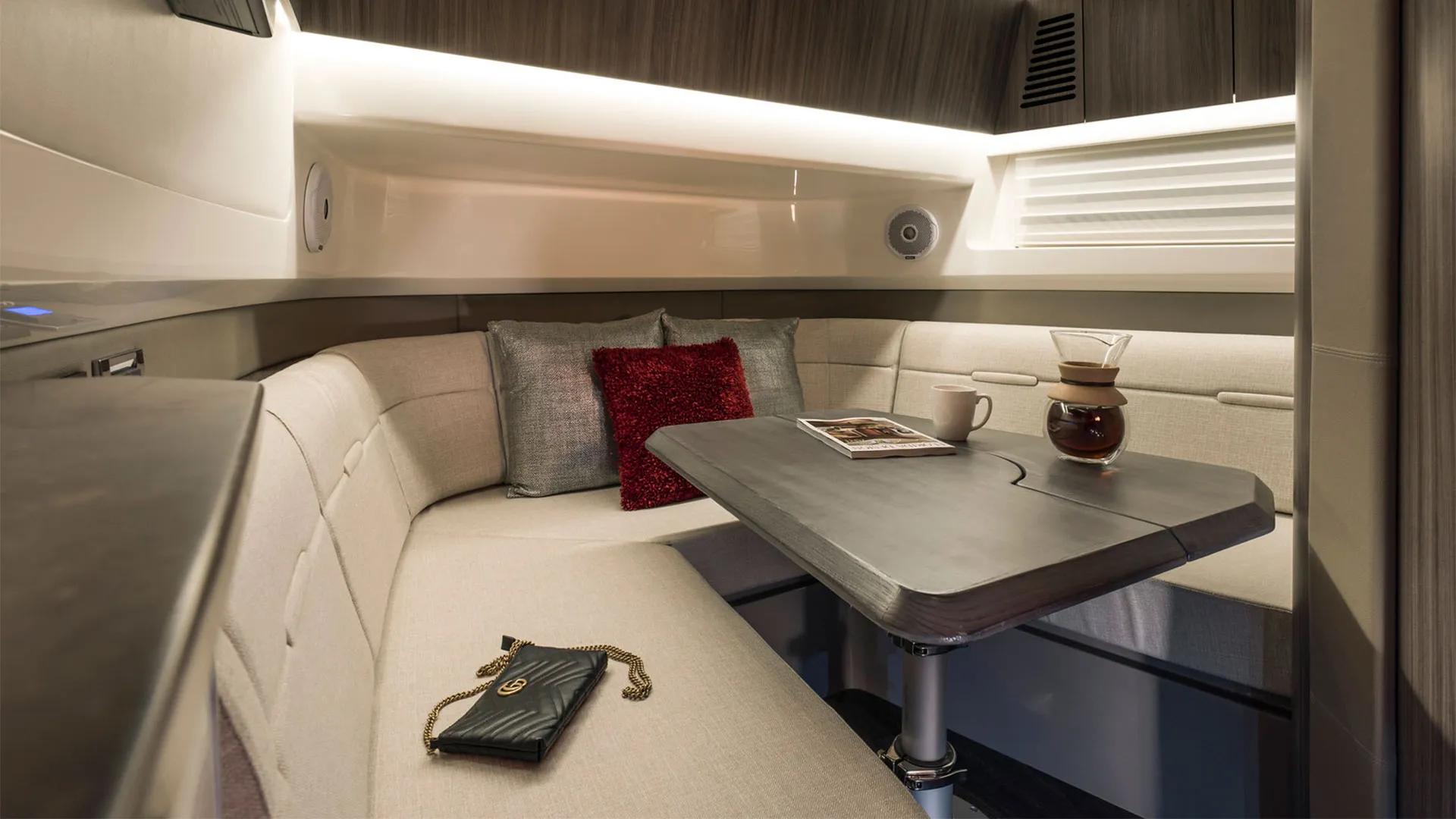

SALON / V-BE R TH
• Ceiling Liner
• CO Monitor
• Drink Holders (6)
• Lights – Standard & Indirect
• Microwave, 120V/12V
• Opening Port Lights with Screens – Port & Starboard
• Outlet, 12 V Accessory
• Outlet, 120V GFI Protected
• Storage – Port Side Day Galley
• Table, Wood
• U-Shaped Seating (Convertible with Filler Cushions
with Fiberglass Liner and Filler Cushion Storage

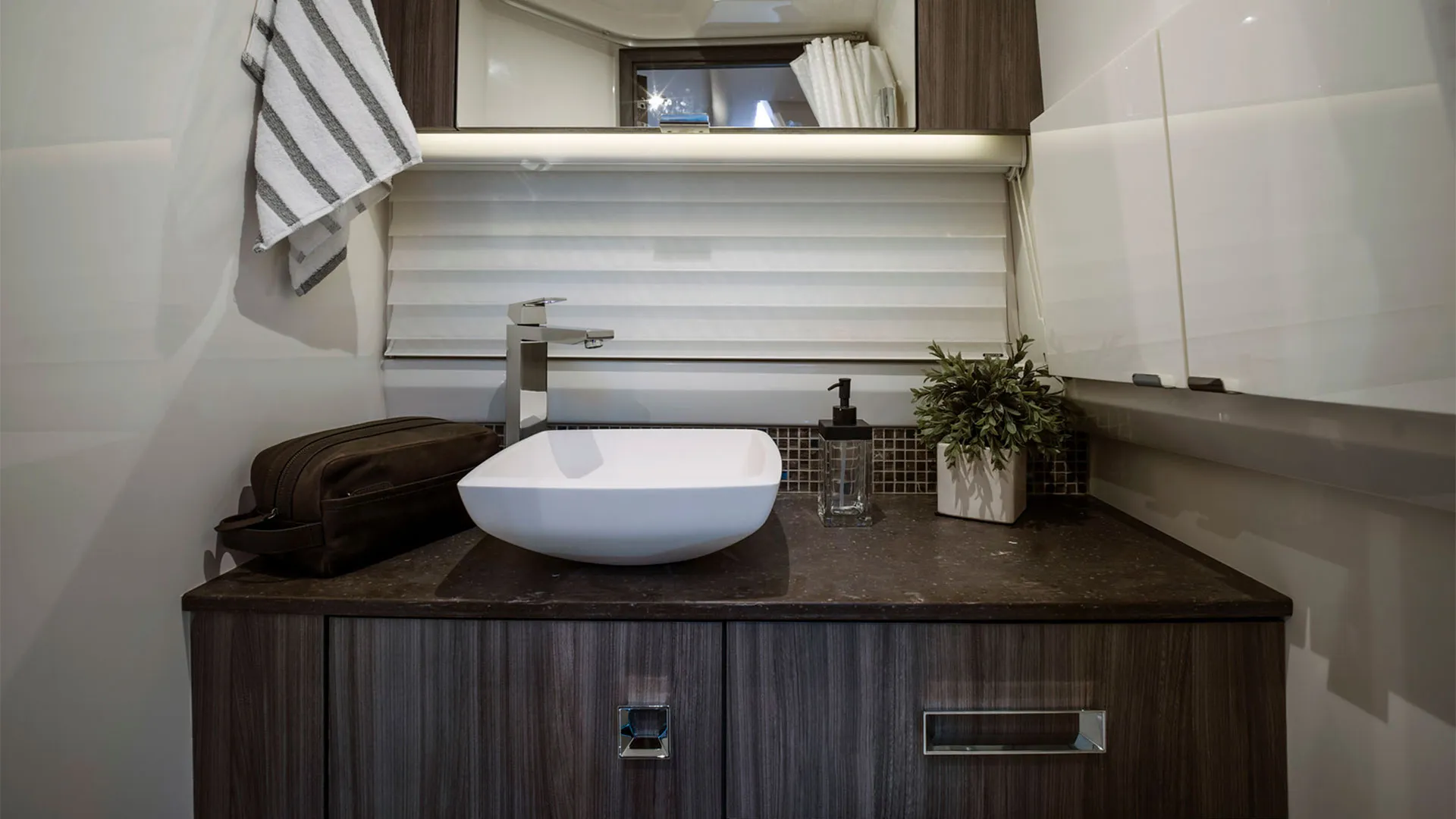

HEAD
• Clothes Hooks
• Courtesy Light
• Glass Sink with Faucet
• Head, VacuFlush® with 28-Gallon Holding Tank
• Lockable Door
• Molded Fiberglass Liner
• Non-Skid Floor Treatment
• Portlight with Screen
• Power Vent, 12V
• Pull-Out Sprayer
• Solid-Surface Countertop
• Sump Box with Automatic Pump for Shower
• Wood Storage Shelf with Mirrored Bulkhead
T E C H N I CA L F E AT U R E S

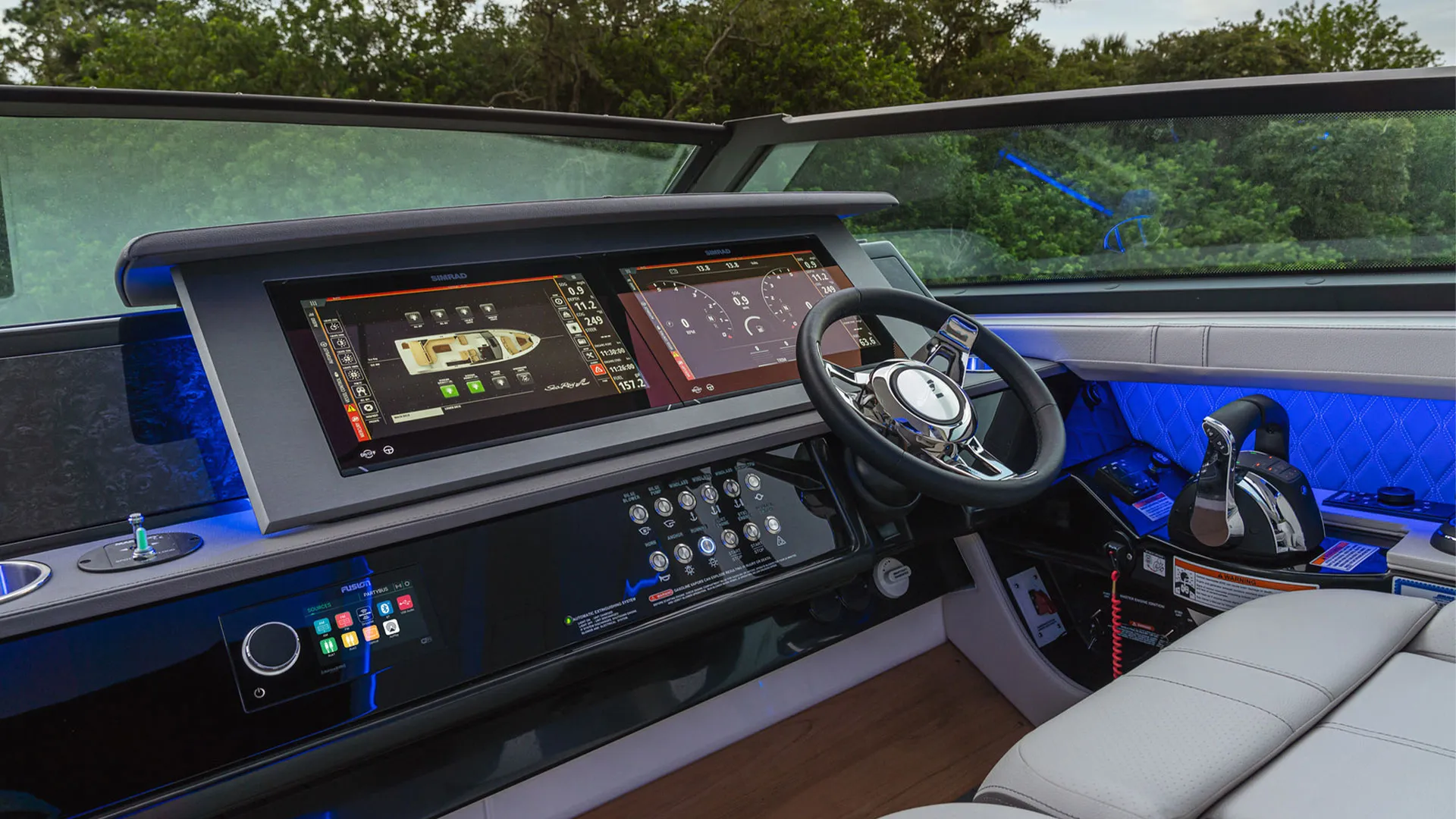

HELM
• Access to remote system monitoring through the
Sea Ray+ mobile app (U.S. only)
• Alarm, High-Water – Bilge & Cabin
• Alarms, Engine – Oil & Water (Audible)
• Drink Holder
• Dual Digital Dash with Mercury® VesselView® Link
Data (16″)
• Active Trim control & monitoring
• Chartplotter with Preloaded Charts (North
America Only)
• OP50 Remote Control for Displays
• Micro SD Card Readers for Updating Charts (2)
• NAVIOP Digital Switching
• Simrad® NSO evo3 (16″) Touchscreen Displays (2)
• Transducer with Depth, Water Temperature &
Fishfinder
• Electronic Circuit 50 amp with Fuse Panel
• Horn

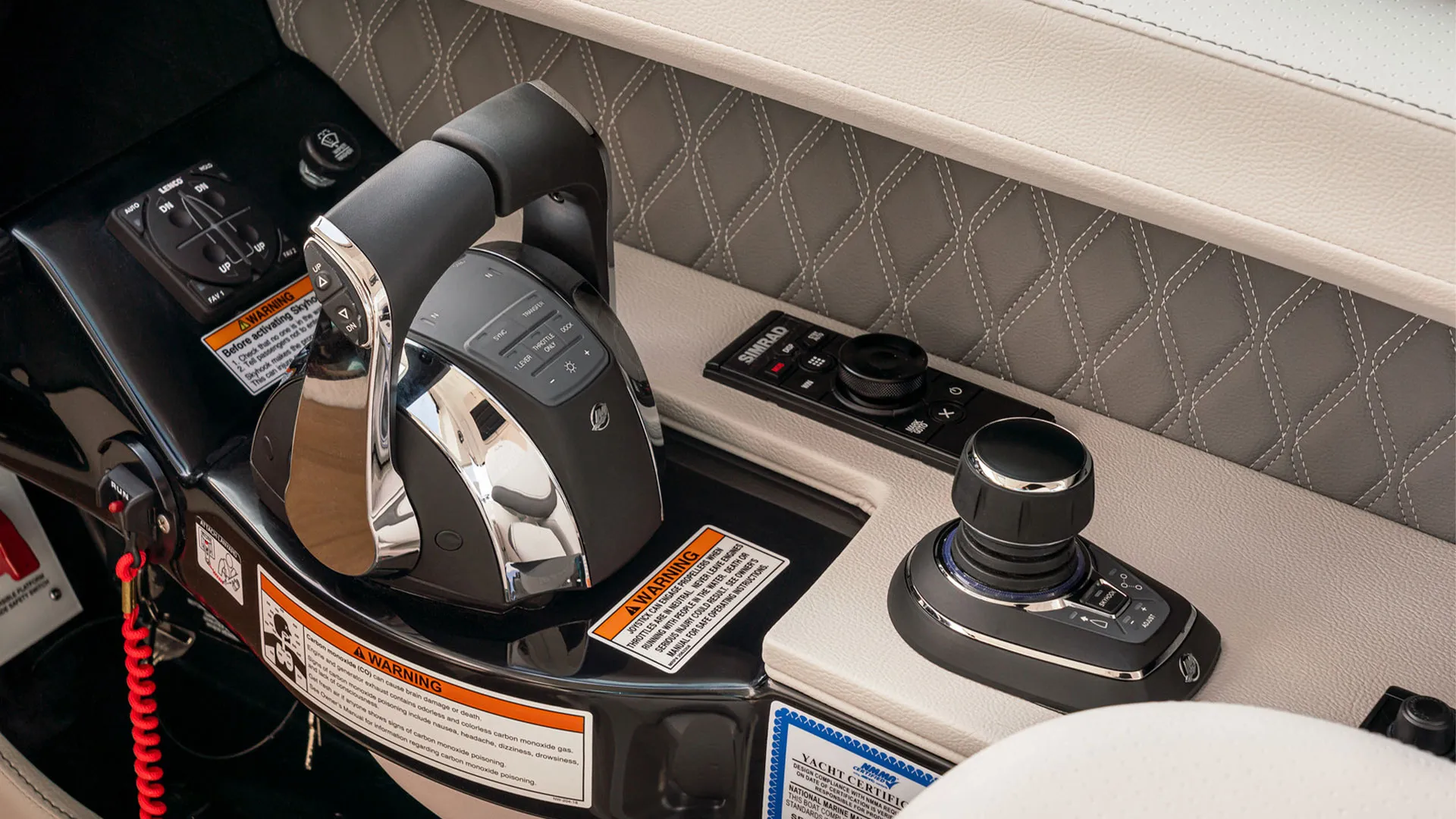

• Mercury Marine® Axius® Joystick Piloting for
Sterndrives
• Parallel Battery Engine Start
• SmartCraft® Digital Throttle & Shift with Trim Switch
& Ignition Cutout Switch (Binnacle Control with All
Engines)
• Active Trim speed-based automatic engine trim
system with integrated GPS
• Engine Start / Stop
• Steering, Power-Assisted with Tilt Wheel
• Stereo, Fusion® Apollo™ RA770 12V AM/FM
• Apollo™ Series Amplifiers, 4-Channel (1200W) – 2
• Apollo™ Series Amplifier, 6-Channel (1800W)
• Bluetooth™
• Digital Signal Processing (DSP)
• NRX 300 Remote Controls in Bow, Cabin, &
Transom (3)
• SRX 400 Head Unit in Cabin with Speakers for
Discrete Zone
• Wi-Fi Audio Streaming with Apple AirPlay® 2

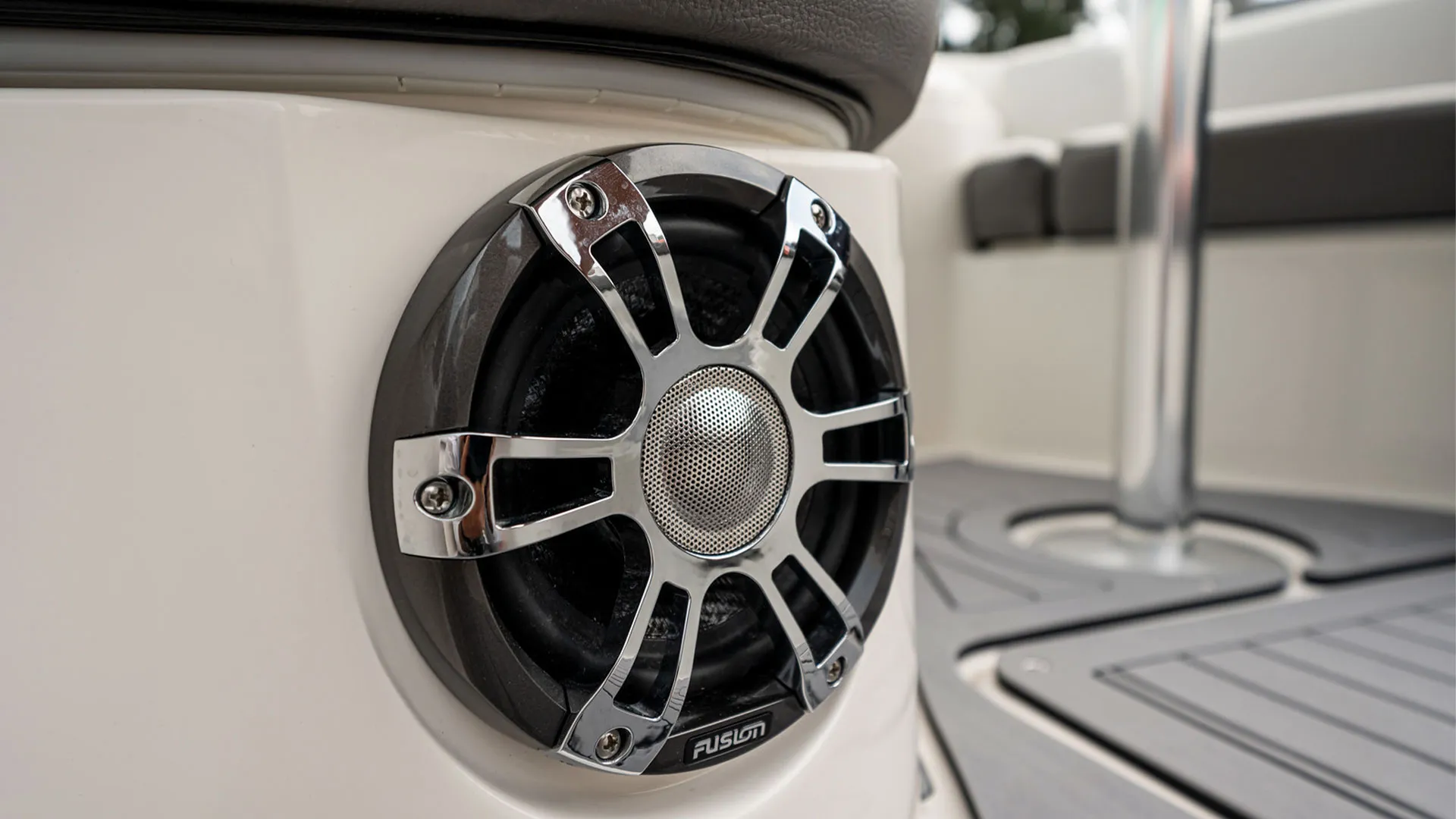

• XS Series Speakers (6.5″) – 6 Pairs
• XS Series Subwoofer (10″)
• Switch Panel with Backlit Weatherproof Lighted
Chrome Push Button Switches
• Tilt & Trim, Power
ENGINE COMPARTMENT
• Bilge Pump, 1700GPH 12V Automatic High-Water
(bilge) – 2
• Blowers, 12V Bilge (2)
• Fire Suppression System – Automatic
• Gel-Coated Engine Compartment
• Insulated Engine Compartment
• Lighting – 12V
• Oil Filter – Remote
E L ECTR ICAL SYSTEMS
• Battery Charger / Converter 120V /60 cycle
• Battery On/Off Switches with Solenoids & Trays (3)
• Galvanic Isolators
• MerCathode (2)
• Shore Power, 120V/60 Cycle – 30-Amp Service with
Inlet, 50’ Cord & Converter, Galvanic Isolator & Main
Distribution Panel (Also Available in 220V/50 Cycle)
• TV Inlet with TV Antenna / TV shore cord
FUE L SYSTEMS
• Evaporative Emissions Fuel System
• Fuel Lines, USCG – Type A-1
• Fuel Tank with Electric Anti-Siphon Valve & Electric
Sending Unit
GENERATOR
• Low Emission – Gas, 7.5 kW 120V/60 Cycle with
Remote Start, Muffler, Closed Cooling, Fuel Filter,
Seacock & Seawater Strainer
UNDERWATER G EAR
• Propellers, Stainless Steel
• Variable Running Surface – Trim Tabs
WATER SYSTEM
• Pressure Water System with 12V Pump
• Faucet – Wet Bar
• Pullout Sprayer – Head
• Pullout Sprayer – Transom
• Water Heater (6 Gallon)
• Water Tank (50 Gallon) with Level Indicator and Water
Filter System
