S TA N DA R D
F E AT U R E S

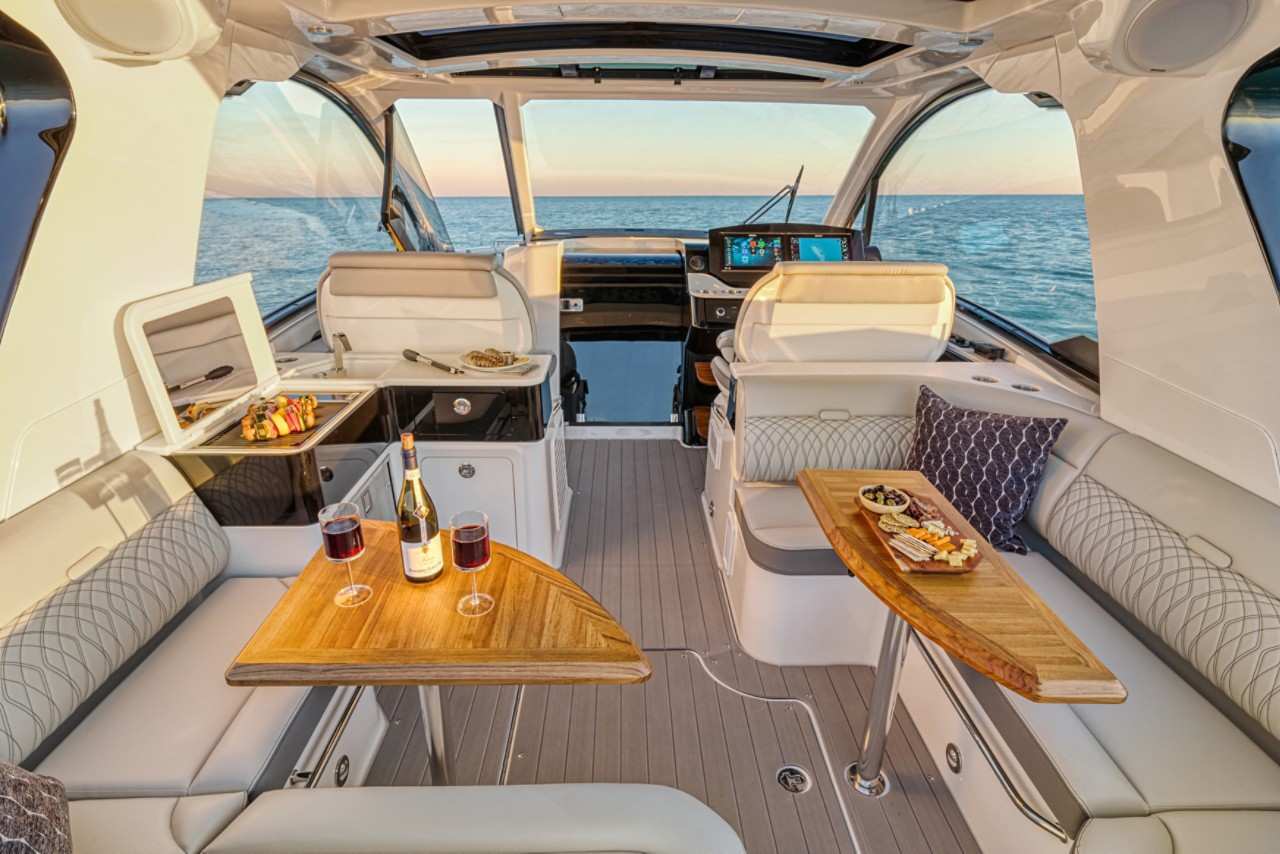

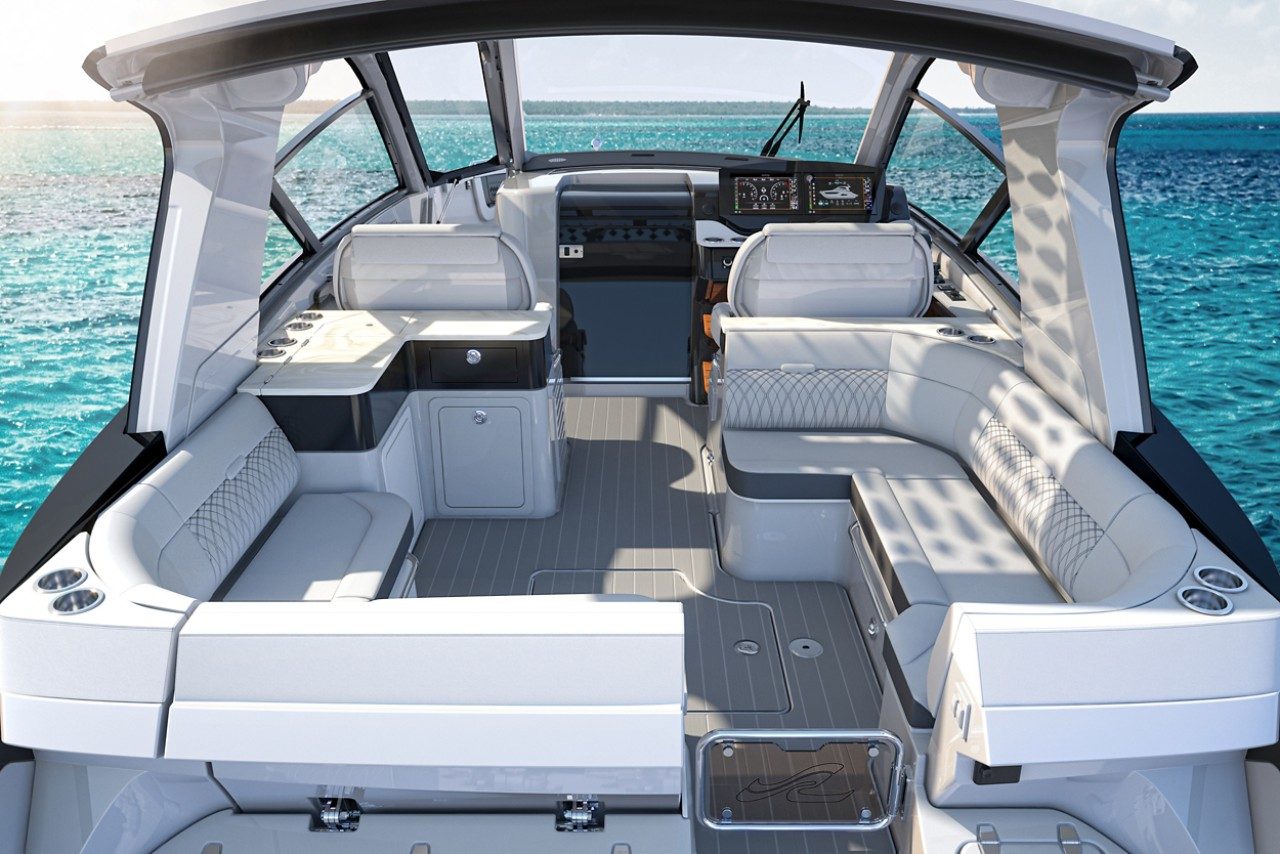

B OW & C O C K P I T
• Cup holders, stainless steel (17)
• Floor liner, fiberglass (self-bailing)
• Lighting, LED (courtesy)
• Outlets, 12V accessory (helm & transom) – 2
• Outlets, 120V GFCI
• Outlets, USB (11)
• Pullout sprayer (transom)
• Table, teak (port cockpit)
DOORS
• Bow walk-through door, gas-assisted
• Cabin entry door, sliding lockable
• Day hatch for bilge access, gas-assisted
• Engine room hatch, electrically actuated with
emergency pull handle & prop rod
• Transom door, acrylic with stainless steel frame
& hardware
S E AT ING
• Aft L-shaped bench seating with storage below

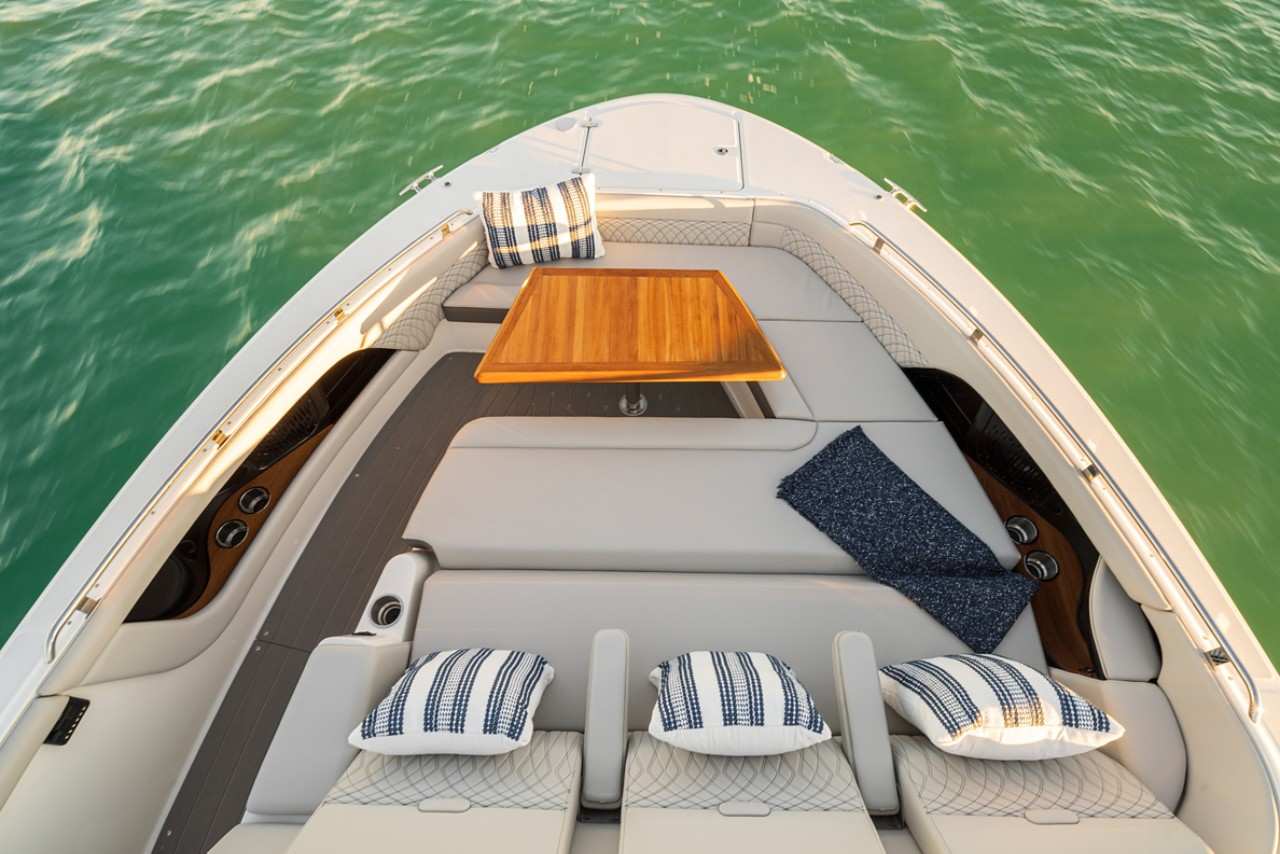

• Bow seating, C-shaped with foldable armrests
• Cockpit social area with opposing seating & storage

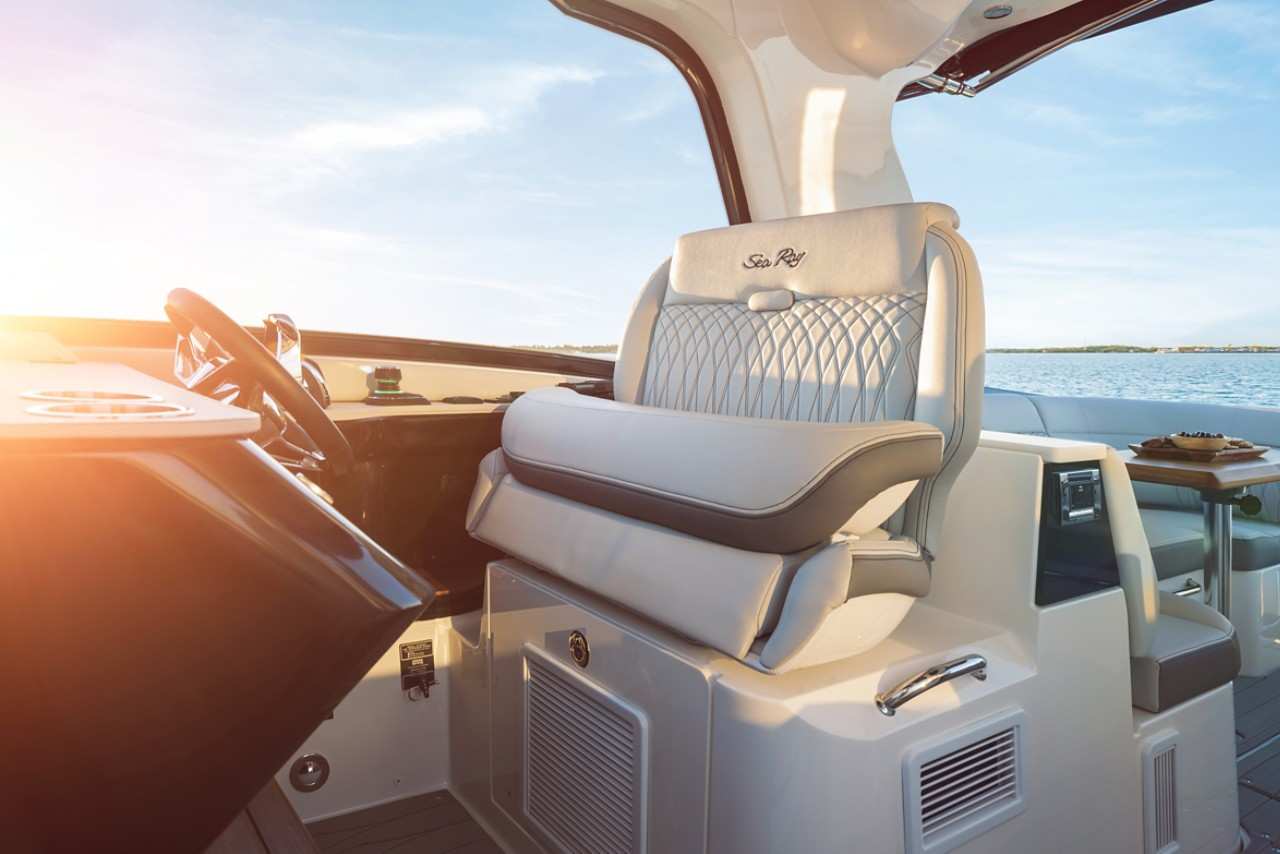

• Helm bench seat with slider & flip-up bolster
• Port companion bench seat with flip-up bolster
• Sunpad (converts from transom wall with
convertible backrest)
S TOR AG E
• Bow storage (under forward seating)

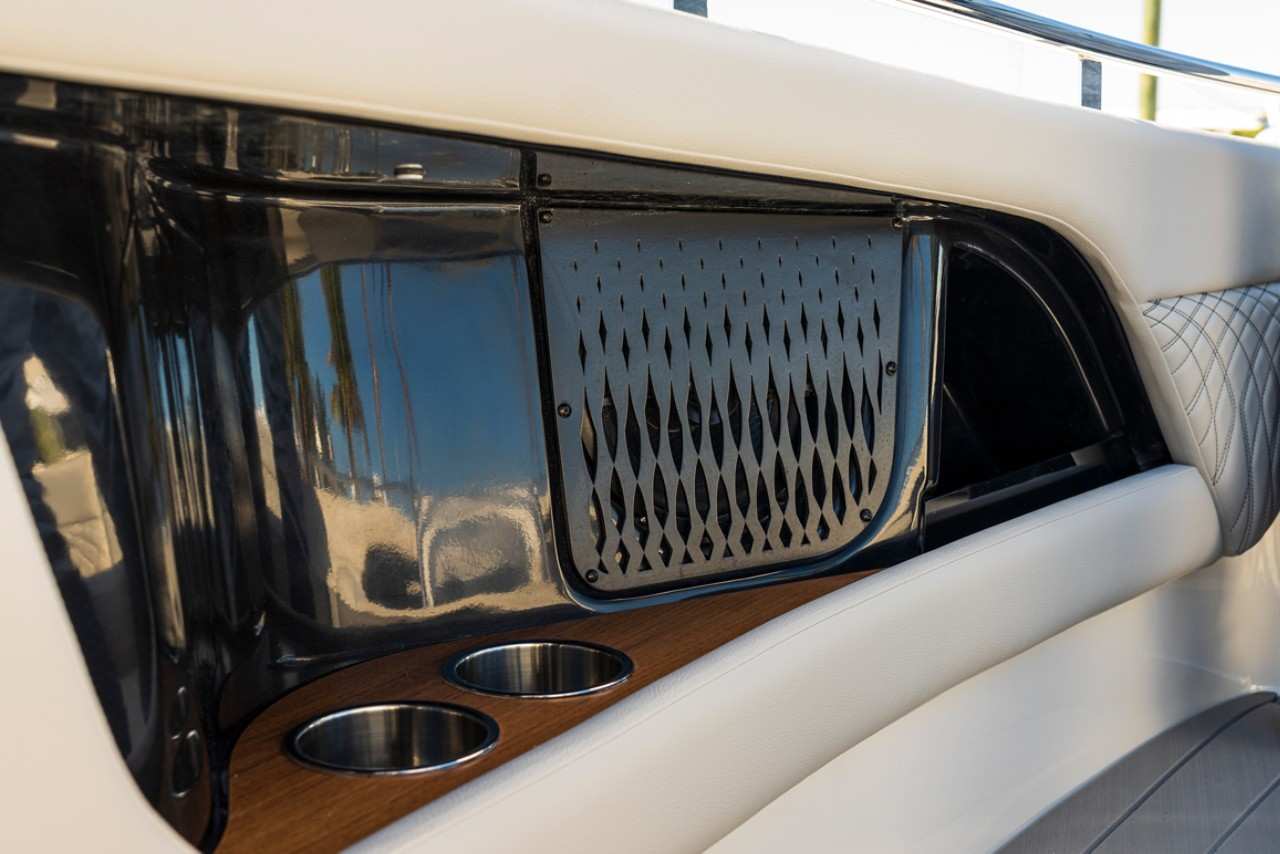

• Side panel tubs with teak inlays, cup holders, USB
chargers & speakers (bow & cockpit)
WE T BA R
• Countertop, solid surface
• Handrail, stainless steel
• Outlet, 120V GFCI
• Sink, stainless steel with hot & cold faucet
• Trash receptacle, pull-out
H U L L & D E C K
• Cleats, stainless steel through-bolted (10″) – 8
• Curtains (aft & side) with tonneau cover & canvas
storage bag
• Deck fill plates, stainless steel
• Eyes, stainless steel (bow & stern)
• Handrails, stainless steel
• Hardtop, fiberglass
• Hull windows, acrylic
• Light, foldable (stern)
• Lights, navigation (stainless steel) – integrated
into deck
• Rub rail, PVC with stainless steel insert
• Sea Ray badge, illuminated (hull)
• Swim platform, integral with deck-mounted
stainless steel four-step swim ladder, fiberglass
lid & grab handle
• Thru-hull fittings, stainless steel
• Windlass with rope, chain & galvanized anchor
• Windshield, tempered tinted curved glass with
single forward pane
• Windshield washer system
• Windshield wiper (starboard)
S TOR AG E
• Anchor storage
• Storage for dock lines & gear (transom wall)

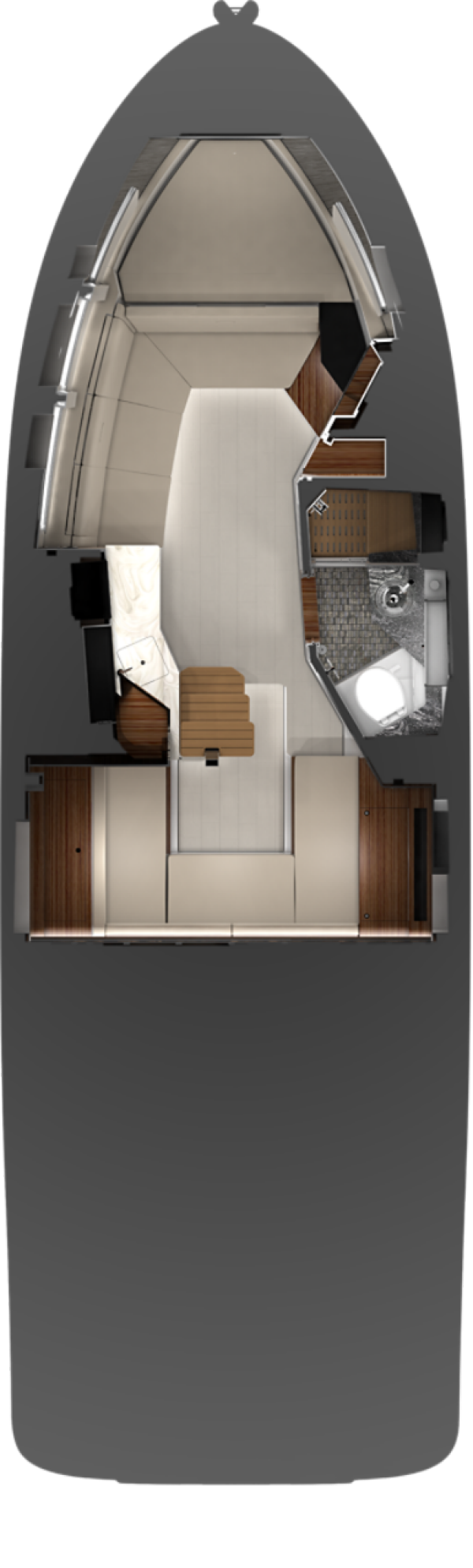

C A B I N
• Interior materials: Driftwood Package
• Lighting, LED (courtesy & accent)
• Steps with aluminum frame & teak treads
(cabin entry)

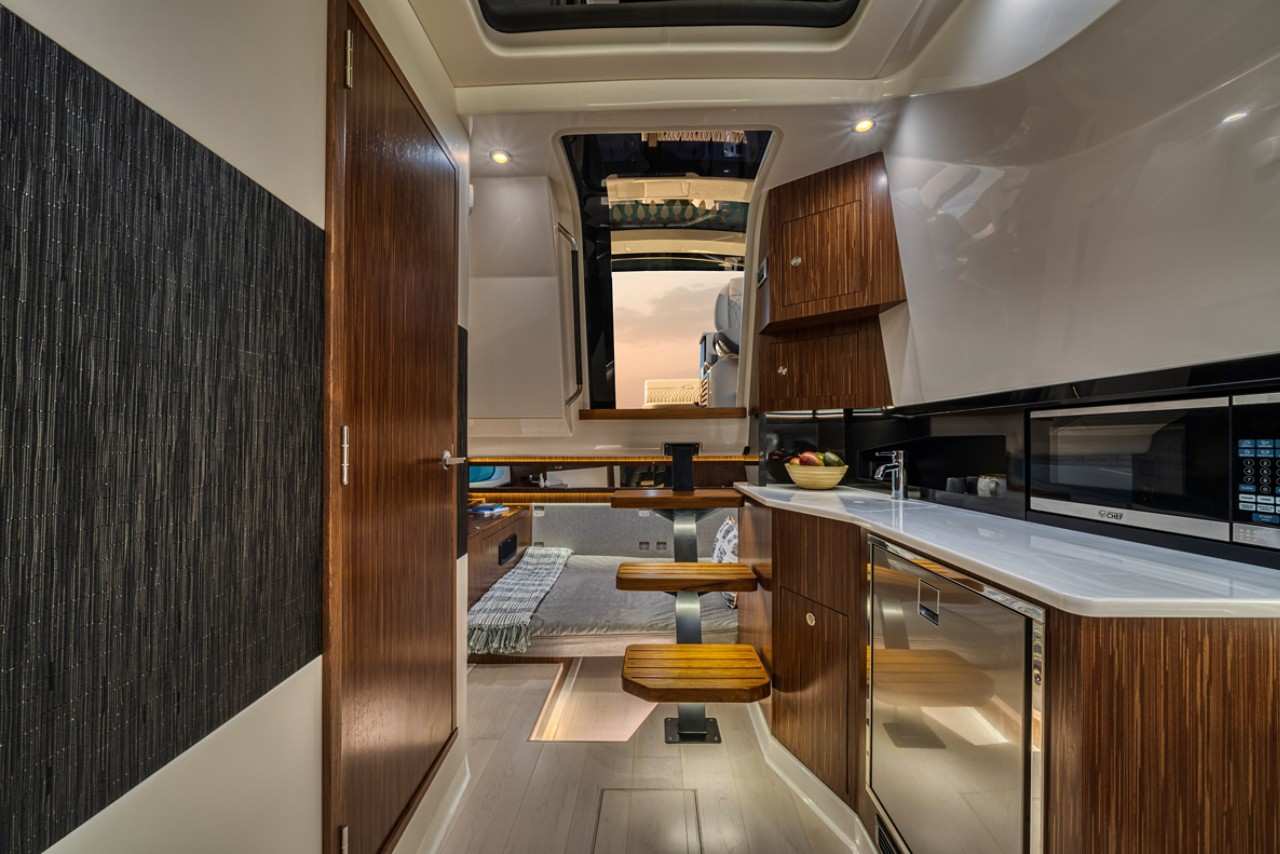

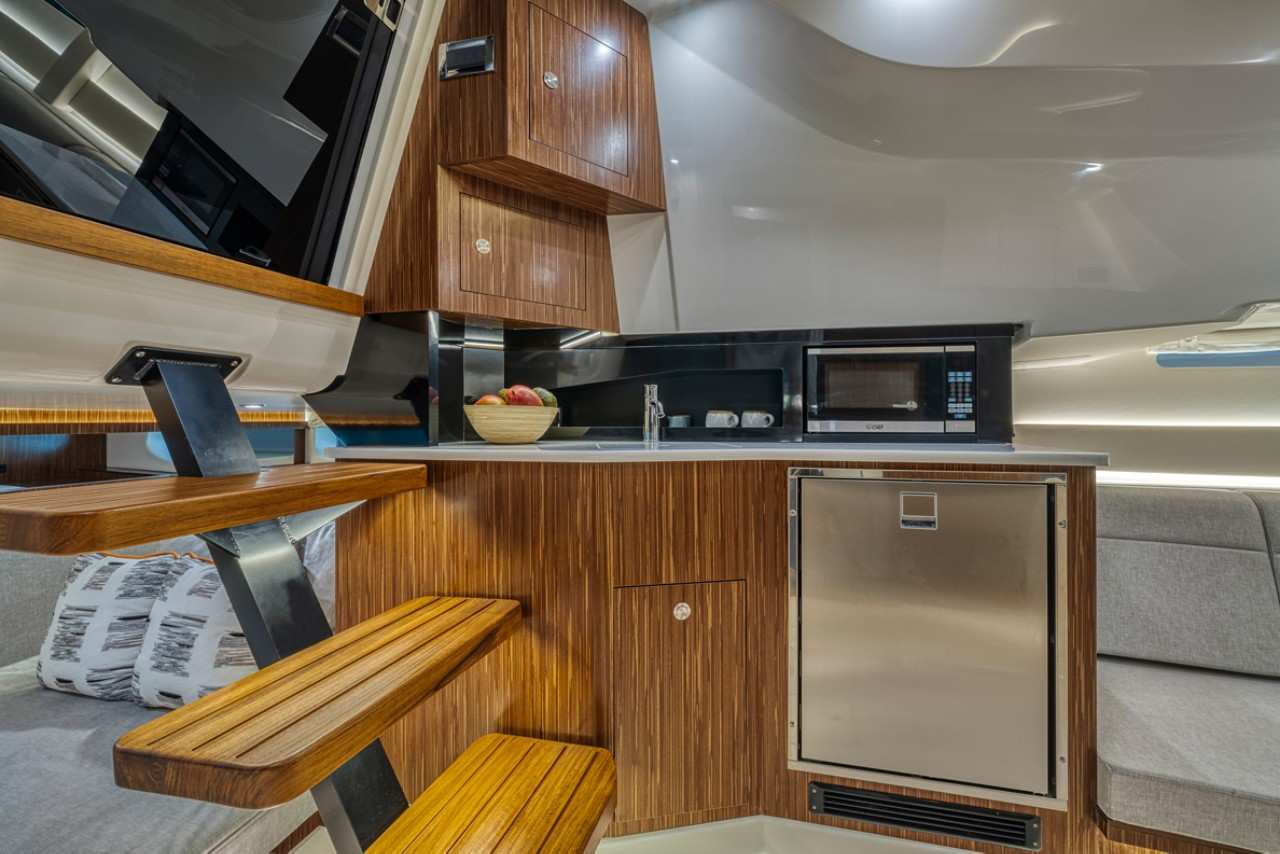

GAL L E Y
• Countertop, solid surface
• Microwave
• Outlet, 120V GFCI
• Refrigerator, dual-voltage
• Sink, stainless steel with faucet
• Storage cabinets, upper
• Trash receptacle, pull-out

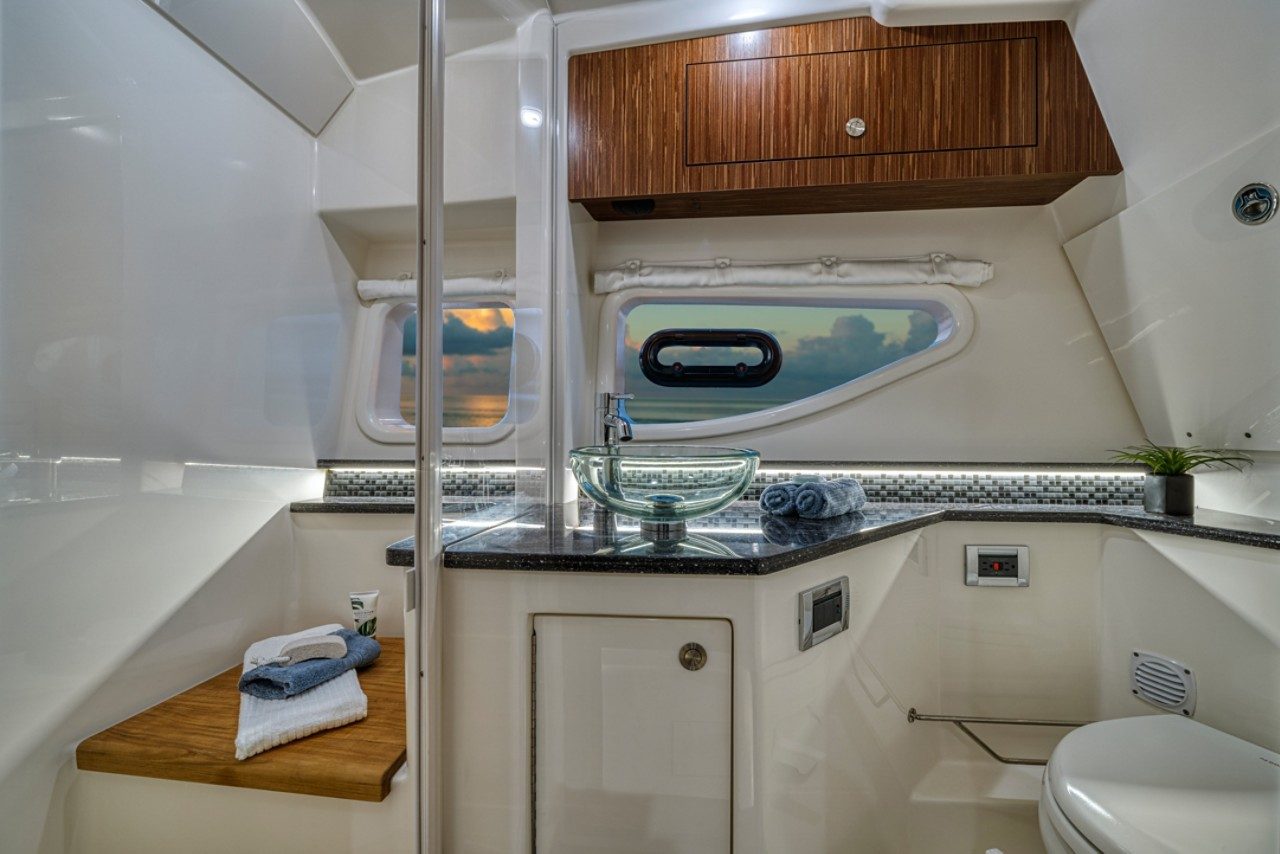

HE AD
• Door, lockable with full-length mirror
• Exhaust vent, 12V
• Flooring, tile
• Full fiberglass enclosure
• Medicine cabinet
• Outlet, 120V GFCI
• Shower with acrylic door, teak bench & teak floor
• Sink, vessel with single-lever faucet
• Toilet paper holder
• Towel holder
• VacuFlush® head with holding tank
• Vanity with solid surface countertop & storage
• Window, ventilation
M ID-BE RTH
• Carbon monoxide monitor
• Outlet, 12V accessory
• Outlet, 120V GFCI
• Outlets, USB (2)
• Pillows, accent
• Seating, U-shaped (converts into
82″ x 52″ sleeper for 2 with bedding)
• Storage cabinets & lockers with shelves

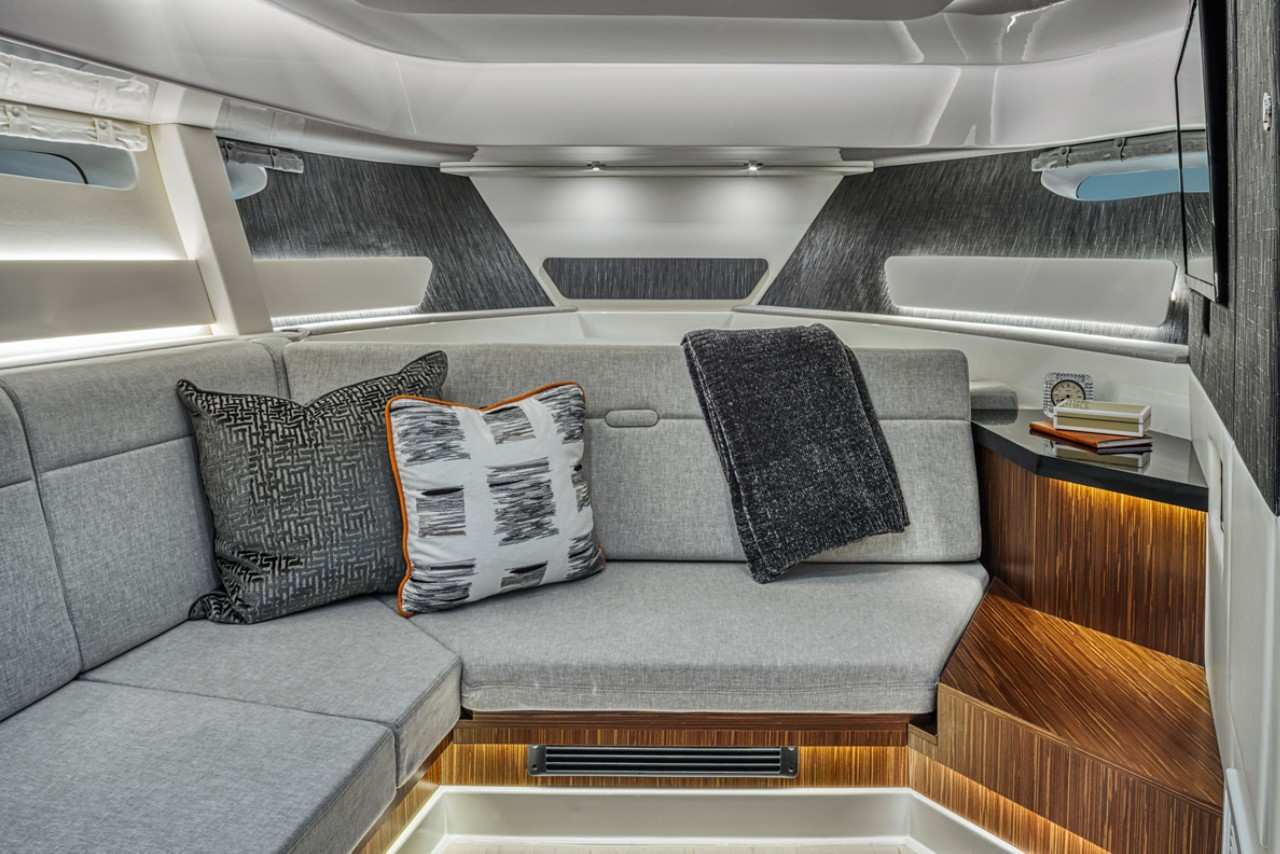

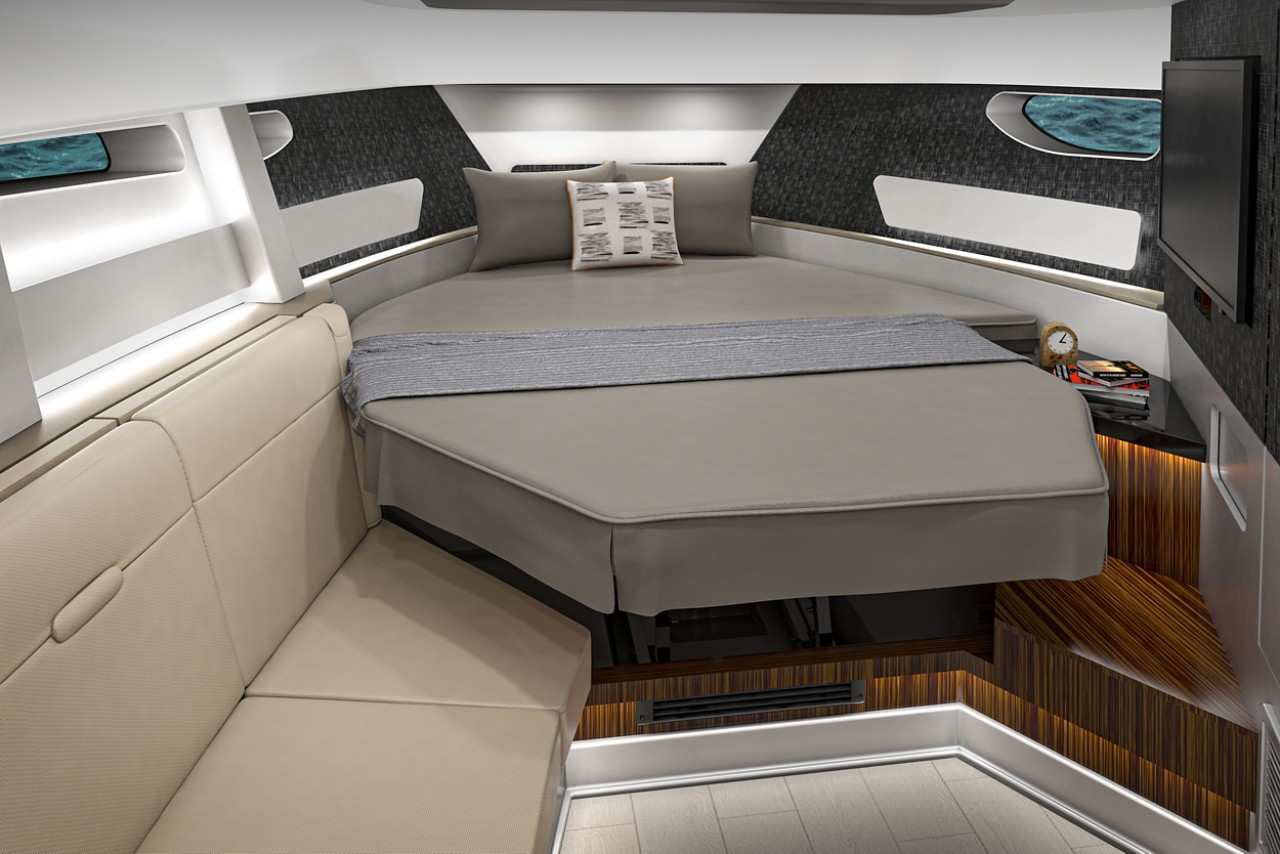

SA LON / V-B E R TH
• Carbon monoxide monitor
• Locker, hanging
• Outlet, 12V accessory
• Outlet, 120V GFCI
• Outlets, USB (2)
• Pillows, accent
• Seating, L-shaped (backrest converts into
88″ x 72″ sleeper for 2 with bedding)
• Shades, pleated (hull windows)
• TV, smart 32″
T E C H N I C A L
E L EC T R ICAL
• Battery charger, onboard – 12V
• Electrical system, 120V 60Hz
• Fuse block
• Generator, gas (7.5 kW)
• Isolator, galvanic
• Main distribution hub, DC
• Main distribution panel, AC/DC with voltage &
current meters
• Mercury Marine® MerCathode® corrosion
protection system
• Remote battery switches
• Shorepower, 120V 60A with converter & 50′ cord
F U S I ON® AU DIO SYS T EM
• Apollo™ RA770 AM/FM stereo (helm)
• Apollo™ Series amplifier, 4-channel (1200W)
• Bluetooth™
• Digital Signal Processing (DSP)
• SRX400 remote unit (cabin)
• Wi-Fi audio streaming with Apple AirPlay® 2
• XS Series speakers (6.5″) – 3 pairs

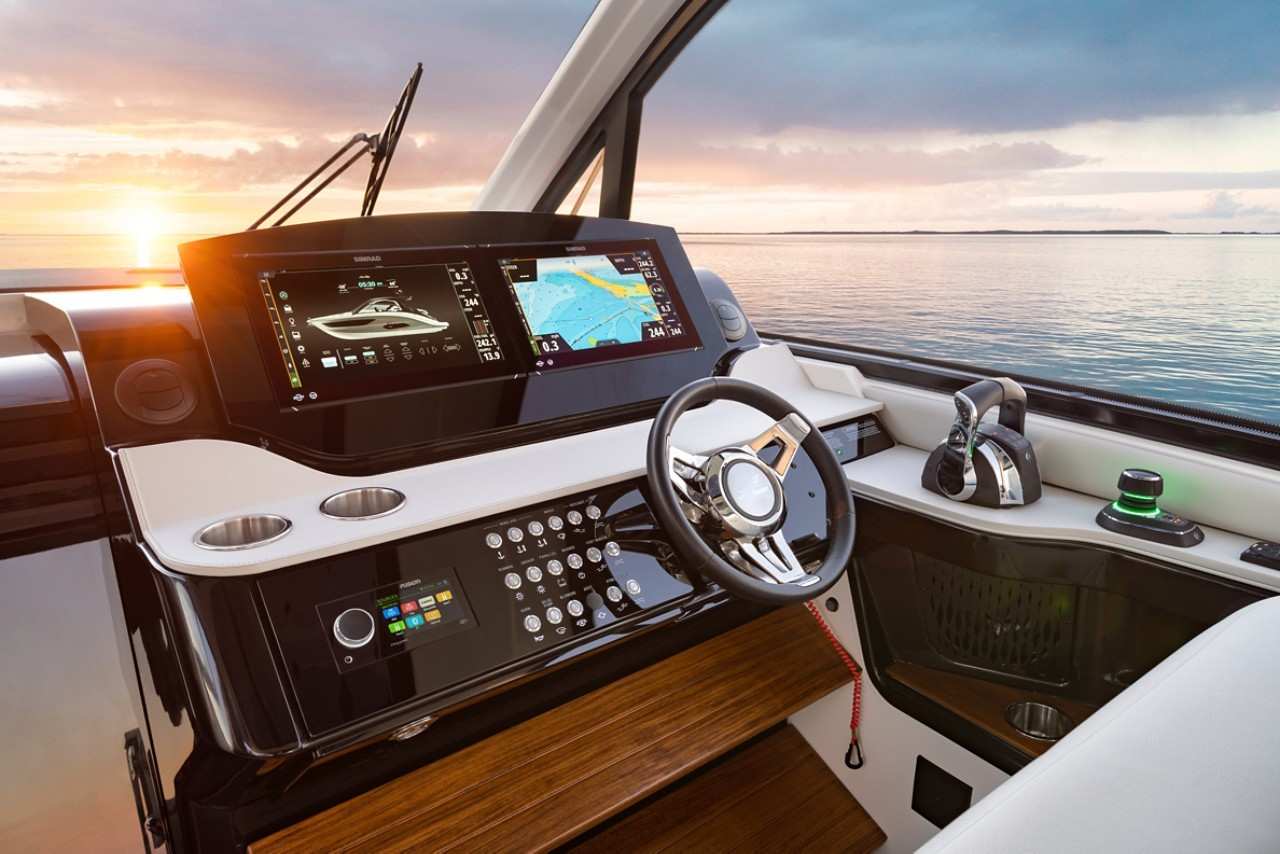

HE LM
• Alarm, high water
• Digital Dash™, dual (16″)
• Active Trim control & monitoring
• Chartplotter with preloaded charts
(North America only)
• CZone® digital switching
• Mercury Marine® VesselView® Link
• Micro SD card readers for updating charts (2)
• OP50 remote control for displays
• Simrad® NSO evo3 (16″) touchscreen displays (2)
• Transducer with depth, water temperature &
fishfinder
• Horn, stainless steel
• Mercury Marine® Axius® Joystick Piloting for
Sterndrives
• Mercury Marine® SmartCraft® Digital Throttle &
Shift (DTS)
• Active Trim speed-based automatic engine
trim system with integrated GPS
• Engine start / stop
• Mercury Marine® VesselView® Mobile
• Parallel start system
• Simrad® RS100 VHF radio
• Steering, power-assisted with Isotta Pachu
tilt wheel
• Switch panel with illuminated weatherproof
stainless steel switches
• Tilt & trim, power
ME C H A N I C A L
AI R CONDI T ION ING & H E AT ING
• A/C & heating (cockpit: 16,000 BTU;
cabin: 12,000 BTU)
BI LGE
• Bilge lighting, 12V
• Bilge pump, 1100 GPH 12V automatic high-water
(mid-ship)
• Bilge pumps, 1700 GPH 12V automatic (aft) – 2
• Bilge storage, finished (aft)
• Blower, 12V
• Fire suppression system, automatic with
manual override
• Insulated & gel-coated enclosure
• Sump box with automatic pump
(mid-ship) for shower
• Vents, integral
F U E L SYS T EM
• Evaporative emissions fuel system
• Fuel lines, USCG compliant
• Fuel tank with anti-siphon valve
& electric sending unit
UNDE RWAT E R G E AR
• Propellers, stainless steel
• Variable Running Surface (trim tabs)
WAS T E SYS T EM
• Holding tank level indicator
(main distribution panel)
• Holding tank with dockside pump-out, 25 gal
WAT E R SYS T EM
• Bow washdown
• Freshwater spigot
• Shower, hot & cold (transom)
• Water heater, 6 gal
• Water inlet, dockside
• Water pressure system with 12V pump & filtration
• Water tank, 46 gal
